P Series Cabinet and Kit Pricing

[stryke]

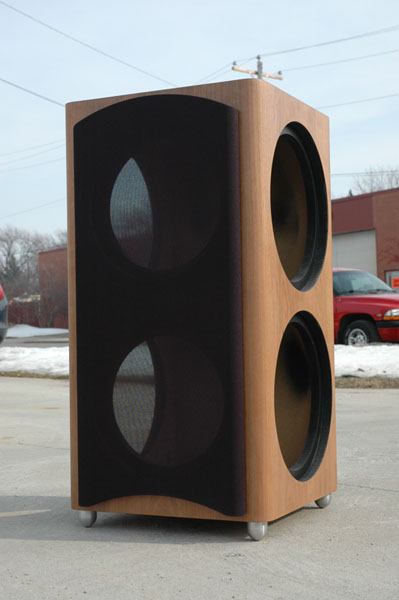

The P series cabinets feature large radiused corners, solid billet aluminum feet and an attractive grill. They are intended for use with our AV series woofers and PR's, although they will work well with other woofers as well. Here are a few rough pics of some of the cabinets:

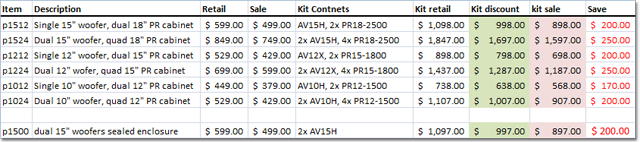

The cabinets come in your choice of three standard veneers of oak, black oak, natural maple or three premium finishes of aged cherry, red cherry, or deep red mahogany. The premium finishes add $50 to the cost. Other custom veneers or stain options can be done at an additional cost. Call or email for info on that. Here is the pricing breakdown.



The introductory Sale price has been extended.

John

[joshk]

What's the volumes of the boxes?

Specifically the P1512?

[stryke]

Hi Josh,

Here are the volumes.

P1512: 5.5cf
P1524: 11cf
P1212: 2.8cf
P1224: 5.6cf
P1012: 1.4cf
P1024: 2.8cf

John

[russ.will]

What size is the P1500 cabinet?

Thanks,

Russell

[stryke]

Here are the full external dimensions for all cabinets (excluding feet):


P1512 cabinet, 24"w x 25"d x 24" tall (without feet) for single 15" and dual 18" PR's

P1524 cabinet, 24"w x 25"d x 46" tall (without feet) for dual 15" and quad 18" PR's

P1212 cabinet, 20"w x 20"d x 20" tall (without feet) for single 12" and dual 15" PR's

P1224 cabinet, 20"w x 20"d x 38" tall (without feet) for dual 12" and quad 15" PR's

P1012 cabinet, 16"w x 16"d x 16" tall (without feet) for single 10" and dual 12" PR's

P1024 cabinet, 16"w x 16"d x 16" tall (without feet) for single 10" and dual 12" PR's

P1500 cabinet, 28"w x 22"d x 24" tall (without feet) for dual sealed 15" woofers.

John

[Travisg]

I would like to order a p1524 how can I do so

[simon5]

You can email Beth, it's : beth at aespeakers dot com

You can also call (920) 469-9198

[stryke]

Here are curves for the P-series dual PR cabinets. The response curves all have a slight taper towards the lower end. This is much more ideal in normal listening environments as it works much better with room gain. A completely flat modeled response will often be overpowering on the low end as room gain actually tilts the response upward.

P1012 - Single AV10H-D2 and dual 12" 1500g PR's

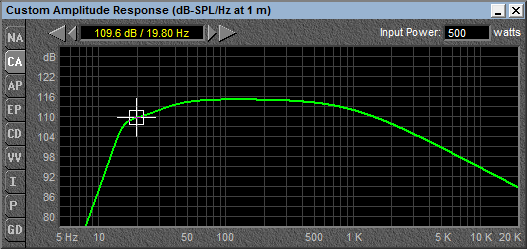

Response curve at 500W recommended power

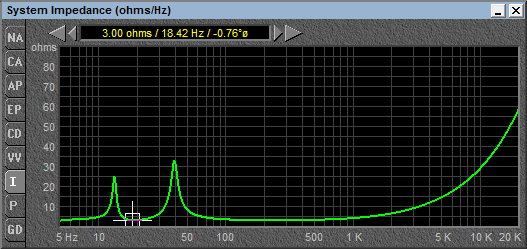

Impedance curve showing 18.4Hz tuning

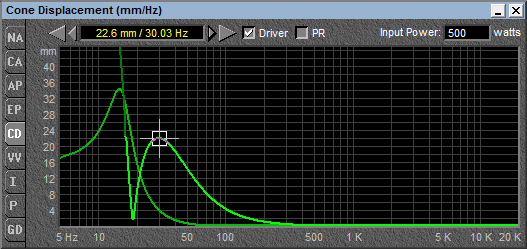

Displacement of driver and PR's at 500W recommended power


P1212 - Single AV12H-D2 and dual 15" 2000g PR's

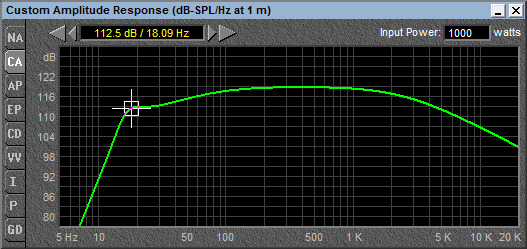

Response curve at 1000W recommended power

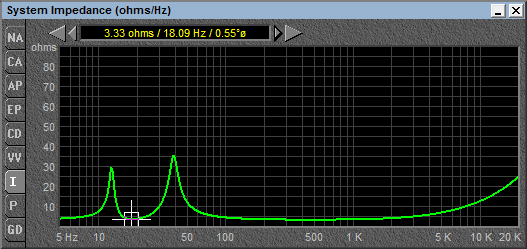

Impedance curve showing 18Hz tuning

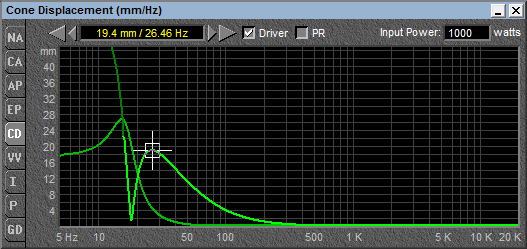

Displacement of driver and PR's at 1000W recommended power


P1512 - Single AV15H-D2 and dual 18" 2500g PR's

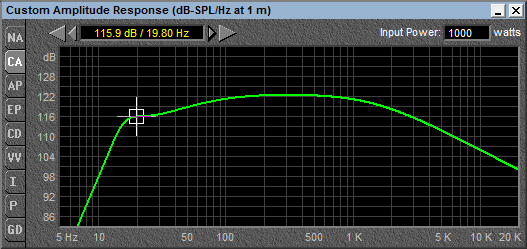

Response curve at 1000W recommended power

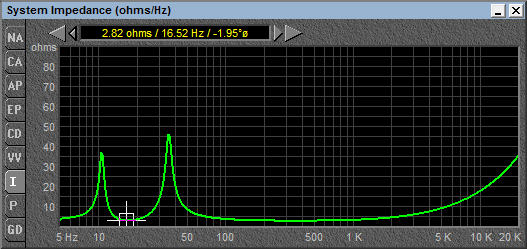

Impedance curve showing 16.5Hz tuning

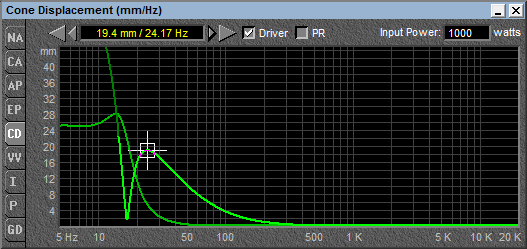

Displacement of driver and PR's at 1000W recommended power


John

[Costner]

This might be a silly question...but would a p1212 work in a car?

[simon5]

It will work fine, but you will have too much low bass, might sound boomy, or not depending on the car room gain curve.

[carljackson47]

Actually, the curve is very nice. P-series dual PR cabinets are perfect example for setting up a good quality cabinet. By the way, is the introductory price still extended?

[Inferno333]

How much would the P1512 cabinet be by itself?

Fully assembled. No drivers.

[simon5]

According to above, that would be 599$, or 499$ if sale price is still available.

[Inferno333]

...

I just looked at the chart again and found it.

Third shift + Me = Zombie.

[simon5]

No problems at all, the chart could have been slightly clearer too.
