C12.1 Alum cone 12" available, similar to old AV12

Postby stryke » Thu Nov 01, 2007 4:49 pm

Hi Everyone,

We have some more closeouts available, This is the C12.1. These are also quite similar to the older AV15's we used to sell. They use the same 2" coil, cone, etc. They are dual 2ohm coil. These have the addition of copper sleeve covering the entire pole to lower inductance, like the Lambda woofers. As a result Bl is slightly lower as the pole OD is turned down .050" to fit the copper on.. They are a very nice low distortion 12" driver with 23mm Xmax for $125 each.

Here are the parameters and a picture:

C12.1 12" alum cone woofer

Quantity Available: 6pcs

Fs: 27Hz
Qts: .5
Qms: 9
Qes: .48
Re: 3ohm
Bl: 16Tm
Z: 4ohm
Le: 2.3mH
Vas: 37L
Mms: 265g
Cms: .13mm/N
Sd: 446sqcm
Xmax: 23mm
Vd: 2.06L


These will be ideal for a small sealed enclosure for car audio. Around 1 cubic foot sealed would be perfect with box fill.


Give us a call 920-469-9198 to place an order. At $125 each these will not last long.
Last edited by stryke on Sat Nov 10, 2007 9:18 am, edited 1 time in total.
*******************************************************************************
Acoustic Elegance/AE Speakers
1825 Mills St
Green Bay, WI 54302
phone: (920) 328-5206
stryke
Site Admin

Posts: 1825
Joined: Tue Sep 24, 2002 6:54 pm
Location: Green Bay WI

Postby PUREAUDIO » Fri Nov 02, 2007 8:51 am

WOW thats a great looking sub for that price....
PUREAUDIO

Posts: 39
Joined: Tue Sep 04, 2007 9:53 pm
Location: LOUISIANA

Postby stryke » Fri Nov 02, 2007 10:27 am

PUREAUDIO wrote:WOW thats a great looking sub for that price....


Yeah, these are close to what our SL12's will be in the near future. They will retail at $149 and SL15's at $179.

John
*******************************************************************************
Acoustic Elegance/AE Speakers
1825 Mills St
Green Bay, WI 54302
phone: (920) 328-5206
stryke
Site Admin

Posts: 1825
Joined: Tue Sep 24, 2002 6:54 pm
Location: Green Bay WI

Postby PUREAUDIO » Sat Nov 03, 2007 12:30 am

i like the black on the basket, and the way the leads are on the spider.
PUREAUDIO

Posts: 39
Joined: Tue Sep 04, 2007 9:53 pm
Location: LOUISIANA

Postby Rene » Sun Nov 04, 2007 3:16 pm

Well, If these are a hint of what you have comin for us in the future. I can't wait till you get every thing up and running. I've been hunting for a sub that meets my requirements for over a year now. found lots out there that came "close" but just didn't cut it in one form or another.
Any chances you'll be coming out with a 10" version, or at least any 10" drivers? I'd gladly go dual 15"s, but dual 10"s are a lot easier to pass by the wife ;)
Rene

Posts: 3
Joined: Tue Sep 18, 2007 5:36 pm
Location: Richmond B.C.

Postby PUREAUDIO » Sun Nov 04, 2007 7:17 pm

yea 10's would be nice
PUREAUDIO

Posts: 39
Joined: Tue Sep 04, 2007 9:53 pm
Location: LOUISIANA

Postby PUREAUDIO » Wed Nov 07, 2007 8:03 pm

Will the SL12 use the same 2'' coil or will it have something bigger say a 2.5'' coil?
PUREAUDIO

Posts: 39
Joined: Tue Sep 04, 2007 9:53 pm
Location: LOUISIANA

Postby stryke » Wed Nov 07, 2007 9:58 pm

The SL12 will have a 2" 4 layer flatwire copper coil. The AV series will be our top line for now stepping up to the 2.5" coil. We have had continuous power handling of up to 1000W on our 2" coil with copper sleeve on the pole, and 1500W on the 2.5" coil.

People don't realize just how important a copper shorting ring really is not just for distortion and inductance, but for wicking heat from the VC. It is Highly electrically conductive and thermally conductive. Many people think that the steel pole piece will absorb heat quite well, and it does, just not very quickly. The biggest factor in cooling a VC and keeping it cool is to pull the heat from the coil quickly. This keeps power compression very low. Otherwise as you deal with power compression you have to put more power into the VC to keep the same output level. This is why most SPL competitors find their first run to be the loudest. As the VC heats, resistance rises and you are no longer delivering as much power to the coil.

So, people ask why we don't do larger diameter coils. For our own products we never needed them. We can already handle plenty of power, our motor strength is right where we need it, and the smaller the diameter coil means lower inductance and distortion.

John
*******************************************************************************
Acoustic Elegance/AE Speakers
1825 Mills St
Green Bay, WI 54302
phone: (920) 328-5206
stryke
Site Admin

Posts: 1825
Joined: Tue Sep 24, 2002 6:54 pm
Location: Green Bay WI

Postby PUREAUDIO » Thu Nov 08, 2007 12:52 am

WOW great answer i believe the same and thats why i find your subs fascinating. Speaking of motor strength what will the AV have (in BL), by the sound of things you guys have a magnetizer which would be great. I think it would be awesome to have a 36k or 42k joule magnetizer.
PUREAUDIO

Posts: 39
Joined: Tue Sep 04, 2007 9:53 pm
Location: LOUISIANA

Postby stryke » Fri Nov 09, 2007 4:11 pm

PUREAUDIO wrote:WOW great answer i believe the same and thats why i find your subs fascinating. Speaking of motor strength what will the AV have (in BL), by the sound of things you guys have a magnetizer which would be great. I think it would be awesome to have a 36k or 42k joule magnetizer.

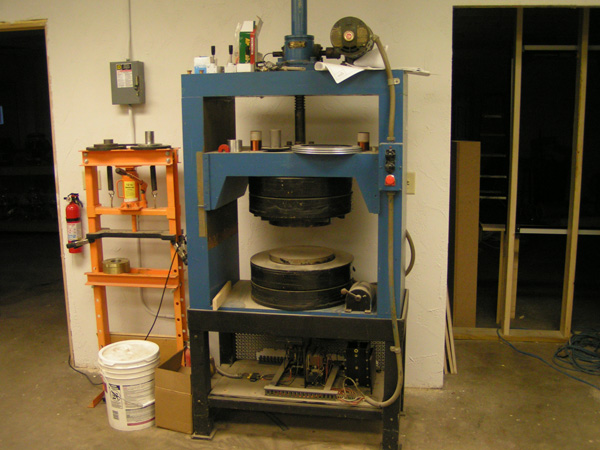

I'm honestly not sure what our magnetizer is rated at. We bought it from our magnet supplier. They used to magnetize boxes of magnets at a time with it. So far we haven't found anything we can't magnetize in it.


John
*******************************************************************************
Acoustic Elegance/AE Speakers
1825 Mills St
Green Bay, WI 54302
phone: (920) 328-5206
stryke
Site Admin

Posts: 1825
Joined: Tue Sep 24, 2002 6:54 pm
Location: Green Bay WI

Postby PUREAUDIO » Sat Nov 10, 2007 12:09 am

i havent see one like that before, but if it works. but i like the way it looks over the other ones ive seen. the otheres are to boxie for my.
PUREAUDIO

Posts: 39
Joined: Tue Sep 04, 2007 9:53 pm
Location: LOUISIANA

Postby cvandec » Sat Nov 10, 2007 2:01 pm

Hi John
So you did not keep Nick's diy magger?
Christian
cvandec

Posts: 7
Joined: Wed Oct 24, 2007 1:33 am
Location: Montevecchia, Italy

Postby stryke » Sat Nov 10, 2007 9:28 pm

cvandec wrote:Hi John
So you did not keep Nick's diy magger?
Christian


I never got his magnetizer. There were some issues with getting all of his stuff from him. The other thing was that it was only large enough for his one size motor. The larger stuff we do we couldn't have magnetized with his anyway.

John
*******************************************************************************
Acoustic Elegance/AE Speakers
1825 Mills St
Green Bay, WI 54302
phone: (920) 328-5206
stryke
Site Admin

Posts: 1825
Joined: Tue Sep 24, 2002 6:54 pm
Location: Green Bay WI

Postby PUREAUDIO » Sun Nov 11, 2007 10:56 am

how large of a magnet do you guys build?
PUREAUDIO

Posts: 39
Joined: Tue Sep 04, 2007 9:53 pm
Location: LOUISIANA

Postby stryke » Sun Nov 11, 2007 3:03 pm

PUREAUDIO wrote:how large of a magnet do you guys build?


We currently stock 3 sizes. The smallest is 5 1/4" x 1" thick, middle is 6 1/8" x 1" thick and largest is 7.5" x 1" thick. We will soon be stocking an 8.5" diameter x 1" thick also.

John
*******************************************************************************
Acoustic Elegance/AE Speakers
1825 Mills St
Green Bay, WI 54302
phone: (920) 328-5206
stryke
Site Admin

Posts: 1825
Joined: Tue Sep 24, 2002 6:54 pm
Location: Green Bay WI
